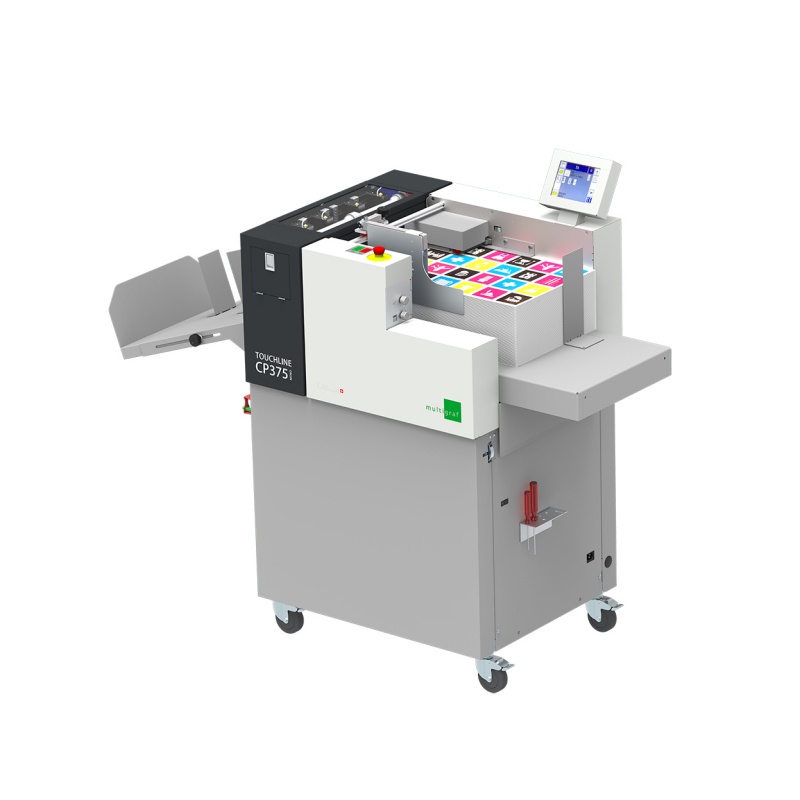

TouchLine CP375 MONO
|
|
Touchline CP375 MONO
The Touchline CP375 MONO for perforating (stop or continuous, lengthwise or crosswise) and professional comb creasing fulfils long-cherished wishes of the graphic arts industry. Tools are changed easily using a patented, fully automated changing device. The tools used are detected electronically and the required pressure is set automatically. Additional tools can be accommodated in the slide-in compartments.
The CP375 MONO can be equipped with up to four perforating heads for longitudinal processing. All operating steps are carried out simply via the touchscreen monitor. Reply cards, vouchers, coupons, lottery tickets and much more can be produced in the shortest possible time and in letterpress quality – even in very short runs or multiple uses.
Features
- rotary tools- up to 4 perforating heads available
- side guide system
- up to 6000 sheets an hour
- Suction feeder
- max paper size: 14.75" x 24"
Specifications
| Feeder system: | suction feeder | |
| Feeder capacity: | 180 mm (7") | |
| Paper size minimum: | 105 x 148 mm (4.13" x 5.83") | |
| Paper size maximum: | 375 x 660 mm (14.75" x 26") 375 x 1'050 mm with table ext.: ((41.3") |
|
| Double sheet detection: | ultrasonic | |
| Paper stocks perforating​: | 80-300 g/m2 oder bis max. 0.3 mm | |
| Paper stocks creasing: | 80-400 g/m2 | |
| Control panel: | touchscreen | |
| Working system: | Multigraf Quick-Set interchangeable tools | |
| Reception tray height: | 120 mm (4.75") | |
| Delivery belt: | optional shingling delivery, L = 1'100 mm (43.3") | |
| Speed: | up to 6'000 (depending on job) | |
| Dimension: | 1'700 x 600 x 1'200 mm (67 x 23.5 x 47.5 inch) | |
| Weight: | 128 kg (282 lb) | |
| Electrical connection: | 100-240 V, 50/60 Hz |
