Pro L5160e Latex

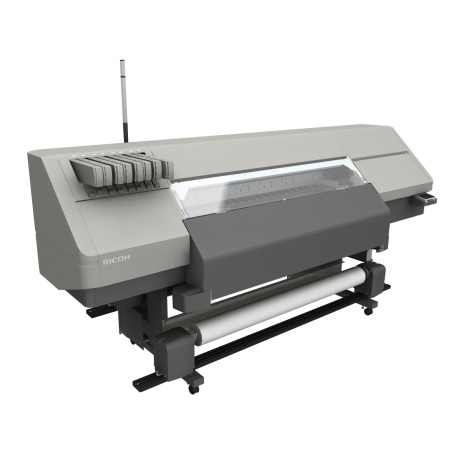

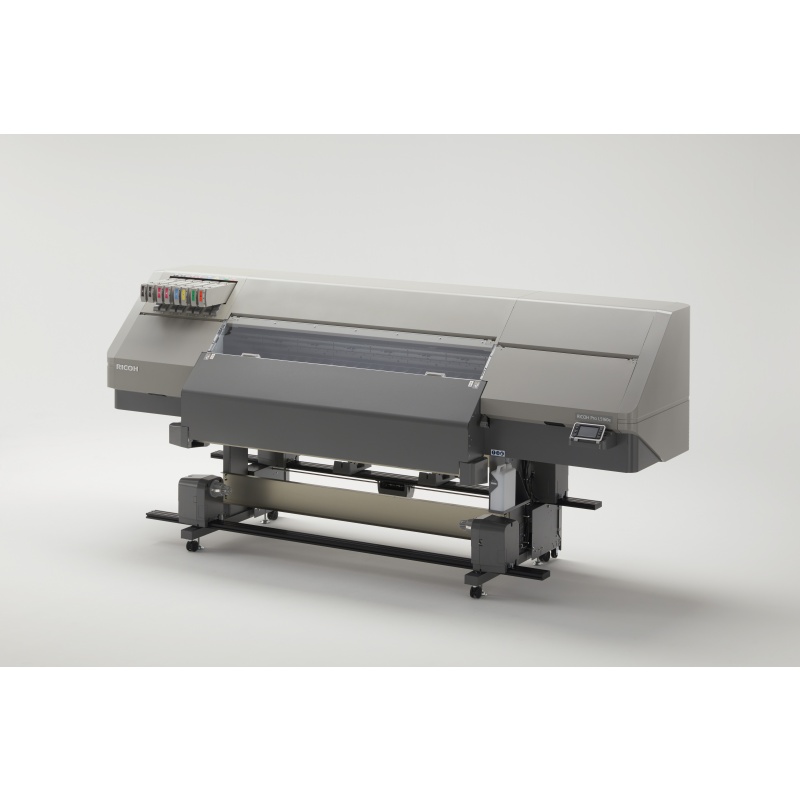

RICOH Pro L5160e
Wide Format Color Latex Printer
Show your clients' true colors. Defy the standard gamut and enhance your output with the RICOH Pro L5160e

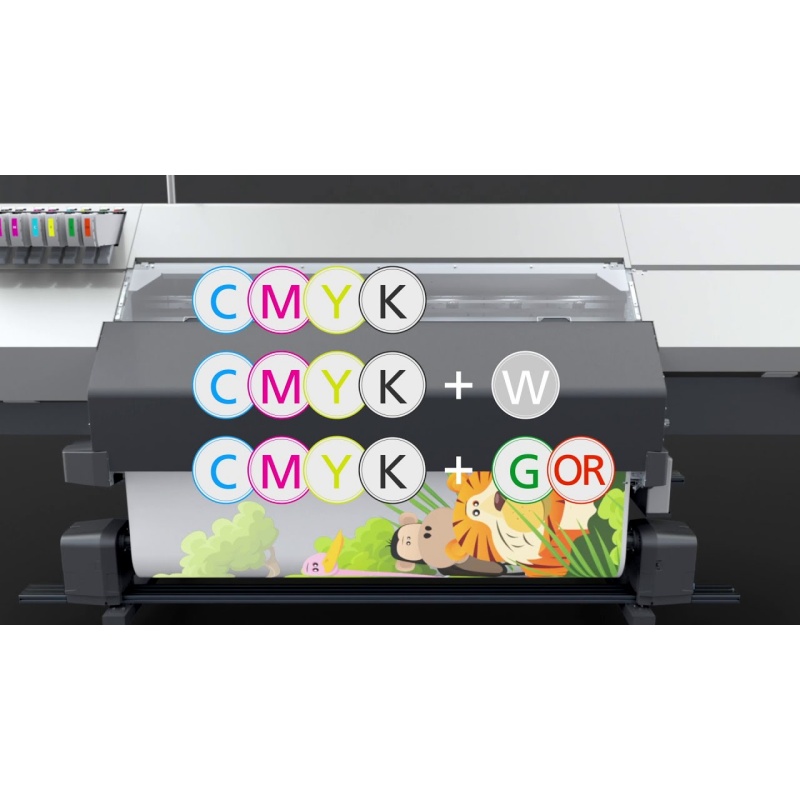

Giving you true media versatility, the RICOH Pro L5160e roll-to-roll wide-format latex printer delivers outstanding quality and durability for both indoor and outdoor applications. Designed for demanding production environments, this system offers 4-, 5- or 6-color configurations with CMYK, CMYK + White or CMYK + Orange & Green. Approach new customers with the confidence that you can accurately match brand colors across substrates and achieve the smooth gradations, vibrant hues and lifelike skin tones they’re seeking.
Expand your possibilities. Open a world of opportunity.
From traditional signage to high-value applications, the Pro L5160e gives you the flexibility to create vibrant, durable output. Produce banners, posters, POP displays, fine art prints, vehicle wraps, wall coverings and interior decor. Use white ink for printing on clear films, colored media and multilayer day/night backlit displays or use orange and green ink for an extended gamut that delivers the most accurate color match.
Ricoh quality starts with our advanced aqueous resin latex inks and Industrial printheads
Designed for years of dependable use, the Pro L5160e features high performance Ricoh AR latex inks offering vivid, long lasting color and durability. Ricoh's MH5441 stainless steel printheads provide extended life and feature variable drop technology for smooth grayscales, life-like skin tones and image quality up to 600 x 1200 dpi.
Optimize your workflow and deliver more high-quality applications the same day
High productivity, powerful ColorGATE PS20 Select RIP software, fast cure latex ink and output that is ready for finishing and installation immediately upon exiting the printer make the Pro L5160e the ideal solution for mid to long production runs requiring quick turn around times. Choose CMYK, CMYK+White or choose CMYK + Orange & Green to broaden your revenue streams.
Features and benefits
- RICOH Pro L5100e series opens up an array of print production opportunities for Print Service Providers (PSPs) and graphic arts display specialists.
- The option of orange and green inks for its RICOH Pro L5160e and RICOH Pro L5130e extended gamut latex large format printers allows the accurate reproduction of a wider range of Pantone and brand colours.
- Three staggered Ricoh print heads achieve class leading print speeds of 46.7 square metres and auto cleaning function to enable maximum uptime.
- Efficient operation is supported by ColorGATE Productionserver Select. The market leading RIP-software solution is tailored to the demands of large format printing.
General Specifications
| Copying/Printing Process | On demand Piezo inkjet system (3 RICOH MH5441 industrial grade printheads - staggered configuration) |
|---|---|
| Ink Type | Latex Ink (2nd Generation AR Ink) |
| Paper Source | Roll |
| Resolution | 450dpi, 600dpi, 900dpi, 1200dpi |
| Memory Capacity | Ricoh Software RIP Memory: 16GB or more |
| Hard Disk Drive | 750GB or more |
| Original Feed | Roll Media Type: Pressure-sensitive and self-adhesive vinyl, banners, canvas, coated and uncoated paper, backlit/clear films, textiles and more |
| Original Paper Width | 64" (1625mm) |
| Original Paper Weight | Media Weight: Maximum 121 lbs. (55 kg) or less |
| Maximum Thickness | Up to 0.43 mm (17 mil) |
| Power Source | AC208-240V 16A 50/60Hz × 2 lines |
| Max Power Consumption | Operate: 6000W Sleep: 5.2W Off: 0.3W |
| Dimensions WxDxH | 129.9" × 39.3" × 59" (3,000 × 1,000 × 1,500mm) |
| Weight | 848.8 lbs. (385 kg) |
