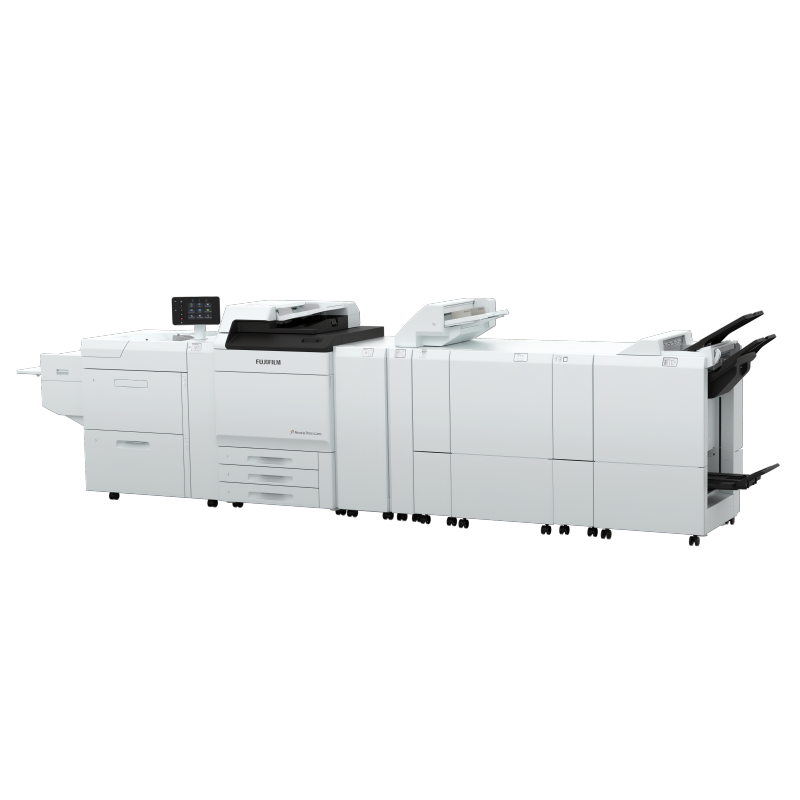

Revoria Press SC285S

Next Gen Technology. Next level CMYK+ Inspiration.

Discover the rich functionality and smooth operability.

Feel the innovative power of expandable colour realized in a space-saving design as it paves the way for new printing possibilities.

PRINT. CREATIVELY. - Unleash creativity and create new value

CMYK+ specialty toner print engine

Specialty toners are available in gold, silver, clear, pink, and textured paper toner.^*1 One specialty toner can be used in addition to CMYK for overprinting. Unique patented technology improves productivity, image quality, and paper versatility performance with the press in a compact size.

CMYK + Silver		CMYK + Pink		CMYK + Clear
Combine gold or silver with CMYK to achieve spectacular metallic colours thanks to Fujifilm technology.		Expand the colour gamut using pink toner and make it possible to reproduce vivid RGB and spot colours such as red, orange, and purple that can’t be achieved using CMYK alone.		The use of clear toner alone or overprinted on CMYK produces a textured, glossy feel and a sense of luxury.

Master specialty toner with a full range of support functions

Automatic pink toner optimization to realize wider colour gamut and smooth skin tone*2. Specialty Colour Quick Viewer (SCQV) allows user to preview the effect of specialty colours as well as different substrates before printing. Users can quickly change to a specific specialty colour without special skills.
		Fujifilm Metallic Swatches

Proprietary technology for CMYK high image quality

Super EA^*3-Eco toner (CMYK)

• Features high-quality Super EA-Eco toner identical to those used in our high-end models.
• Toner particle size has been reduced to among the smallest in the industry, and toner particle shape standardized for crisp rendering of detailed characters and fine lines.
• Gradations, such as halftones, are reproduced more smoothly and beautifully for more even blue skies and skin tones.

2,400 x 2,400 dpi LED printhead

Thanks to our unique technology, the compact, high-image-quality LED printhead delivers high-resolution output at up to 2,400 x 2,400 dpi for sharp lines and images, enabling high-definition printing.

*1 Availability of Gold and Silver will be announced later.

*2 Available in Revoria Frow

*3 EA : Emulsion Aggregation

PRINT. FLEXIBLY. - More printing possibilities than ever before

• Offer better solutions thanks to reliable technologies that enable a wide variety of paper sizes and post-processing.
• Supports a wide range of paper sizes, from a minimum of 90 x 146 mm up to 330 x 660 mm, with optional banner sheet printing (single-sided) up to 330 x 1,300 mm.
• Paper weights flexibility from lightweight 52 gsm to heavyweight 400 gsm.

Folding carton and label sticker Printing on envelopes with a minimum paper width of 90 mm Printing on water-resistant paper for menu lists Supports banner sheet sizes up to 330 x 1,300 mm

Technology that keeps you ready for anything

Print beautifully even on textured paper The intermediate transfer belt ensures reliable, high-quality output even on typically difficult-to-print textured media, such as embossed papers.

Removes static electricity for stable paper handling^*4

• Enables stable paper handling.
• Protect operators safely from high amount of static electricity.

Reliable paper feed across various types of paper^*5

The air-suction feed tray, equipped with our proprietary Shuttle Head technology, ensures a reliable feed of papers prone to paper dust accumulation, textured papers, and coated papers that tend to stick together.

*4 Static Eliminator D1

*5 Air Suction Feeder

PRINT. PRODUCED. - Making productivity and print quality work together

85 ppm high productivity

• Realize top speed for both uncoated paper (52-400 gsm) and coated paper (72-400 gsm).
• High-productivity A3 printing at 47 ppm

Calibration for G7 standard^*6

G7 calibration achieves consistent gray balance and neutral tonality across different printing processes, substrates, and printing conditions. A standard that is widely adopted in the printing industry to ensure colour consistency and quality across various printing technologies and platforms.

Note: G7^® is Idealliance’s global industry-leading set of specifications for achieving visual similarity across all print processes.

*6 G7 certified the combination with Revoria Flow Print Servers.

High resolution-, high productivity-ready print server

• 1,200 x 1,200 dpi RIP processing reproduces images with their original vivid quality. Even fine text and lines can be reproduced at 1,200 dpi resolution.
• High-precision 3D calibration and feedback functions ensure consistent colour reproduction.
• Different-sized data can be imposed at any desired position for more efficient use of banner sheets and reduced paper waste.

PRINT. INTELLIGENTLY. - Supporting your business growth

AI correction (available in Revoria Flow)

• AI automatically identifies the scene per photo, applies appropriate image correction, and prints them beautifully.

Person		Indoor		Landscape		Outdoor
skin tone brightness		texture brightness		sky colour noise		backlight sharpness

Scan originals for easy colour-matching

When reprinting previous work or prints produced on other machines, you can match colours simply by scanning a sample print. Colour matching is possible based on paper originals, even when original printing conditions are unknown, eliminating the need for operators to create complex profiles.

Real-time detection and correction during printing^*7

Automatic detection and correction of colour density variations and front-to-back misalignments during printing. Optimization continues throughout the printing process, with little to no decrease in print speed. Real-time correction can be performed during normal printing operations without needing high-level expertise or reliance on special skills.

*7 Smart Monitoring Gate D1

PRINT. EFFORTLESSLY. - Handle production and office work with 2-in-1 versatility

Equipped with office-ready features

Duplex Automatic Document Feeder

Various scanning functions

• Store to Folder^*10
• Scan to PC^*11
• Job Flow^*12
• E-mail

*8 Standard Document (A4), 200 dpi, to Folder.

*9 Copying speed is 85 ppm (A4) at maximum.

*10 Scanned files are stored to Folders on the device. To store them to PC, use web browsers, Stored File Manager 3 belonging to Network Scanner Utility 3, or TWAIN compliant applications.

*11 Scanned files are sent and stored to PC folders via FTP transfer or SMB.

*12 Scanned files are sent to defined destinations. You need to create a job flow in advance in which distribution destinations are specified.
