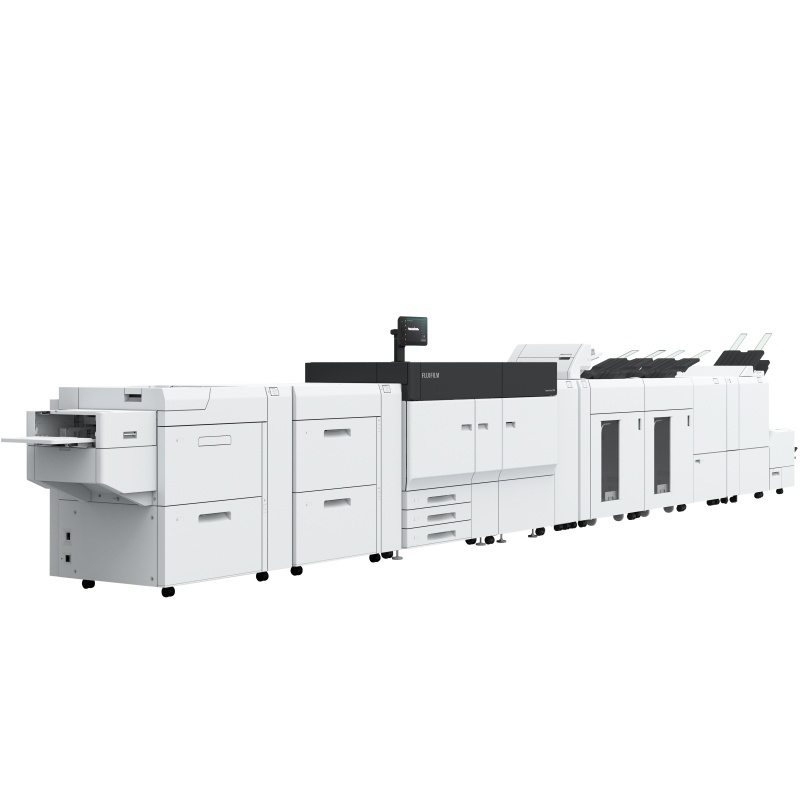

Revoria Press EC1100

FUJIFILM Revoria Press EC1100 provides support for numerous applications and offers a wide range of options for creative finishing. It ensures high image resolution quality even at high printing speeds, while enhancing image vibrancy, providing smooth transitions between tones, and ensuring text sharpness. In addition to aesthetically appealing features, the printer can also handle longer formats and heavier types of paper.

Unlimited productivity and versatility

Envelope Paper weight up to 400gsm Extended format up to 864mm double-sided Full Bleed Trim Tickets Postcards Business cards Extended format up to 1,200mm Note: Samples in this catalog include those that require separate finishing.

Maximum speed of 100 pages per minute and high productivity with mixed media

Achieve high utilization rates with a high-performance print engine that produces 100 pages per minute^*1. Printing mixed jobs^*2 on coated and uncoated paper with minimal downtime, along with image quality adjustment optimized when changing paper. Long paper sizes of 330 x 1,200 mm can also be printed at a speed of 16 pages per minute with an air suction feeder.

*1: 52 to 300 gsm, A4.

*2: When the same paper size and priority speed mode are selected.

High-performance air suction feeder handling media

Each sheet is securely picked up and delivered by a head using air suction, which improves paper feeding performance for low-quality, textured, and coated media.

Note: Optional configuration.

Supports long paper lengths up to 1,200 mm

The printer supports a wide range of paper sizes - from 98 x 148 mm to 330 x 488 mm. Equipped for all configurations, the multi-sheet inserter for printing banners also prints on long paper (330 x 660 mm) with the option for single-sided printing on long paper (330 x 1,200 mm) and automatic double-sided printing on long paper (330 x 864 mm), opening up new applications and business opportunities.

Supported sizes

Handling various media weights from 52 gsm to 400 gsm

Everything from thin flyers to thick business cards can be printed. Furthermore, it can not only handle heavy long paper up to 350 gsm*, but also excels in media handling efficiency and versatile printing to meet a wide range of customer demands.

*: For single-sided printing of long paper up to 330 x 660 mm with the optional C1-DSXL vacuum feeder or C1-DSXL-L chain vacuum feeder. Supported paper weights vary depending on the feeder and length of paper. See the brochure for details.

Wide selection of finishing options

Easily complete jobs from printing to finishing with the automated functions of the Revoria Press EC1100 printer and its wide selection of finishing options, including A3 cover insertion, punching, stapling, staple-free stapling, center spine stapling, single folding, Z-folding, folding into 3 equal parts, scoring, trimming, full trimming, and square back binding.

Types of finishing:

Inserting sheets / covers		Punching		Stapling		Center spine stapling		Single folding		Z-folding
Folding into 3 parts		Scoring *1		Vertical trimming		Horizontal trimming		Full trimming		Square spine book binding

*1: Up to 5 creases are possible.

Note: Optional configuration.

Increase productivity with Revoria Flow EC11

The print server maximizes printer productivity, quickly processing high-performance jobs at high resolution of 1,200 x 1,200 dpi, 10 bits, while easily handling variable printing and other high-performance tasks.

"Intermediate Data Format" (IDF) reduces the size and processes jobs at high speed.

Text and images are automatically defined and managed in object units, with high image quality prioritized and processed quickly while minimizing performance loss.

High-speed processing is achieved with the "RIP acceleration board" hardware.

The printer operates efficiently across the physical specifications of the server, allowing for quick output performance with adjusted high speeds.

Note: Standard configuration.

"High-speed serial transmission technology" from the print server to the printer The print server processes and transmits data to the printer at 4.25 Gbps/channel* wideband with automatic error detection and correction, ensuring high reliability.

*: 2 channels used in 1 color.

High image quality, automatic processing technology, reliable system that maximizes uptime.

1,200 x 1,200 dpi x 10-bit RIP rendering

The print server boosts printer productivity, quickly processing high-performance works at a high resolution of 1,200 x 1,200 dpi, 10 bits, while effortlessly managing variable printing and other high-performance tasks.

Precision

Edge enhancement:

Contour screen processing reproduces sharp text and lines by suppressing jaggedness that often occurs in fine lines and text.

Text/line weight adjustment:

Multiple toner density levels are available for selection, applied to the contour to adjust the desired balance for improved text readability. In these processes, the printer mitigates the compression of white text and bolds black text when the text is small.

Correct errors with visual log display

Check user logs easily with the timeline feature that displays job status, printer status, and history in chronological order.

Stable color reproduction with 3D calibration

Revoria Press EC1100 ensures accurate color calibration with an Inline sensor or X-Rite i1® Pro 3 spectrophotometer. It also supports stable color reproduction, featuring high-resolution 3D calibration, including feedback for both single and mixed colors.

Automation with Inline sensor

Save time and improve efficiency with automated adjustments for color calibration, media image alignment, image transfer adjustment, uniform density adjustment, and tone reproduction curve adjustment.

Optimize printing conditions for each paper type

Reduce adjustments when setting up print jobs with preset parameters in the media library, such as tension and skew. Optionally, you can customize the preloaded list of recommended paper types and save up to 1,000 paper type settings for faster print job preparation.

From monitor to printer

Eliminate the need to check colors with every print. The "Colour Profile Maker for Display" allows you to accurately check* the color of printed materials on your screen. *: Some color ranges may not be reproducible.

Automatic clearing after paper jam "Auto Sheet Clearing"

Reduce downtime due to jams with automatic clearing of remaining paper after a jam.

Easy troubleshooting during a jam

When a paper jam occurs, offset pages are inserted to identify any missing or duplicate pages.

Supported technologies

1. Control panel
   Access settings easily and view job status and errors with a large 10.1-inch touchscreen LCD.

2. VCSEL-ROS / EA-Eco toner^*
   VCSEL-ROS provides a print resolution of 2,400 dpi, while energy-efficient EA-Eco toner^* achieves a synergistic effect by controlling toner volume based on coated/uncoated paper, ensuring high-quality images comparable to offset printing.
   *: Emulsion Aggregation-Eco Toner.

3. Mechanical vacuum feeder system / multi-feeding detection device
   The vacuum feeder^* is equipped with a patented air suction mechanism to stabilize various paper types at high feeding speeds. The multi-feeding detection device detects multiple feedings and ensures accurate printing of documents.
   *: Optional

4. "Gate-Type" Registration Mechanism
   This mechanism corrects the tilt of the paper moving at high speed and stabilizes the paper path.


5. Compact roller fuser with belt feeder
   The compact roller fuser with belt feeder provides even heat and pressure necessary for fusing images on various paper types, including heavy papers.


   A. Roller heaters B. Roller pressers C. Fusing pad



6. Built-in double decurler
   This device corrects the curvature of paper that can negatively affect stable transfer. The amount of correction can be adjusted to match the size and orientation of any type of paper curvature.

7. Compact paper cooling device
   Stable paper transfer and smooth finishing for high-quality print jobs are achieved with the help of a compact paper cooling device.

8. Inline sensor
   Don't waste time on settings and machine jams with automated adjustments for color calibration, media image alignment, image transfer adjustment, uniform density adjustment, and tone reproduction curve adjustment.

9. Real-time curvature correction
   The amount of curvature in prints can be adjusted by installing additional curvature removal module D1.

Remote services* - Reliable support system

FUJIFILM Business Innovation remote services increase device reliability, uptime, and productivity - making it easier for us to help you keep your business running smoothly. Through remote services, we connect our support systems and tools with expert teams around the world to provide responsive assistance when you need it most. This enables us to offer proactive solutions with robust foundational knowledge and a comprehensive understanding of our products.

• Reduce downtime by transmitting machine data for issue detection and prevention.
• Maintain printer supplies and automatically deliver them, improving usage efficiency.
• Automatically report metering for billing to save time and improve accuracy.

*: Availability depends on location.
