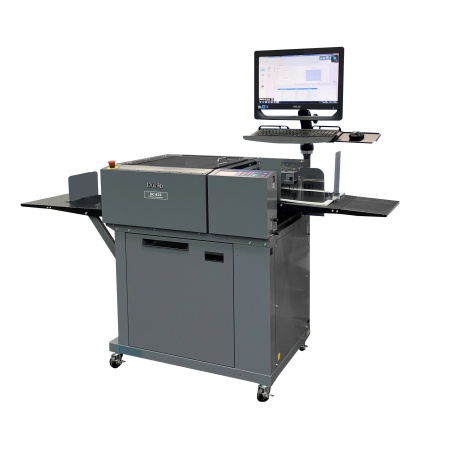

DC-618



Slitter/Cutter/Creaser



All-in-One Precision Finishing for Shorter Runs

  • Removes margins/gutters and prevents toner cracking
  • Creates custom T- and L-shape perforations
  • Eliminates touchpoints and streamlines workflow







The fully automated DC-618 Slitter/Cutter/Creaser is Duplo’s compact yet powerful solution for short run demands. With its ability to slit/cut/crease and perforate digitally-printed applications in a single pass, the DC-618 delivers professionally-finished jobs up to 23 sheets per minute. Cut job costs by doing away with time-consuming set ups and make-ready times. Finish jobs in fast turnarounds. Incredibly efficient and easy to use, the DC-618 produces a wide range of full-bleed applications from 24-up business cards to invitations and tickets on demand.





Features



  • Automated job set up and changeovers
  • Crease width tool to process thicker stock
  • Integrates with Fiery Impose to automate job preparation
  • Perforating and in-line folding options for additional finishing











Key Applications



  • Business cards and postcards
  • Gatefold invitations
  • Slit-scored greeting cards
  • Direct mail with perforated reply cards
  • Marketing collateral





Specifications



Maximum Speed:   23 sheets per minute
Input Paper Size:   209.8 mm x 209.8 mm do 330.2 mm x 998.2 mm (8.26" x 8.26" to 13" x 39.3")
Feeder Capacity:   99 mm (3.9")
Paper Weight:   110-400 gsm
Slits:   Up to 6 per sheet
Cuts:   Up to 30 per sheet
Creases:   Up to 20 per sheet
Options:   1.219 mm (48") long conveyor stacker, Cross perforating module, PC and PC arm, Rotary tool module, DC In-Line Folder, Manual perforation module
